CABLE TRAY
| Product | Description |
|---|---|
| Cable Tray | Designed for cable routing and support, our Cable Trays provide a robust and efficient solution for organizing and protecting electrical cables. |
| Specification | Description |
|---|---|
| Product | Cable Trays and Cable Ladders |
| Dimensions | Available in various width, height, and depth configurations to meet project requirements. |
| Material Options | Offered in steel, aluminum, or fiber-reinforced plastic (FRP) for different environments. |
| Finishes | Finishing options include hot-dip galvanized and powder coated for corrosion resistance and durability. |

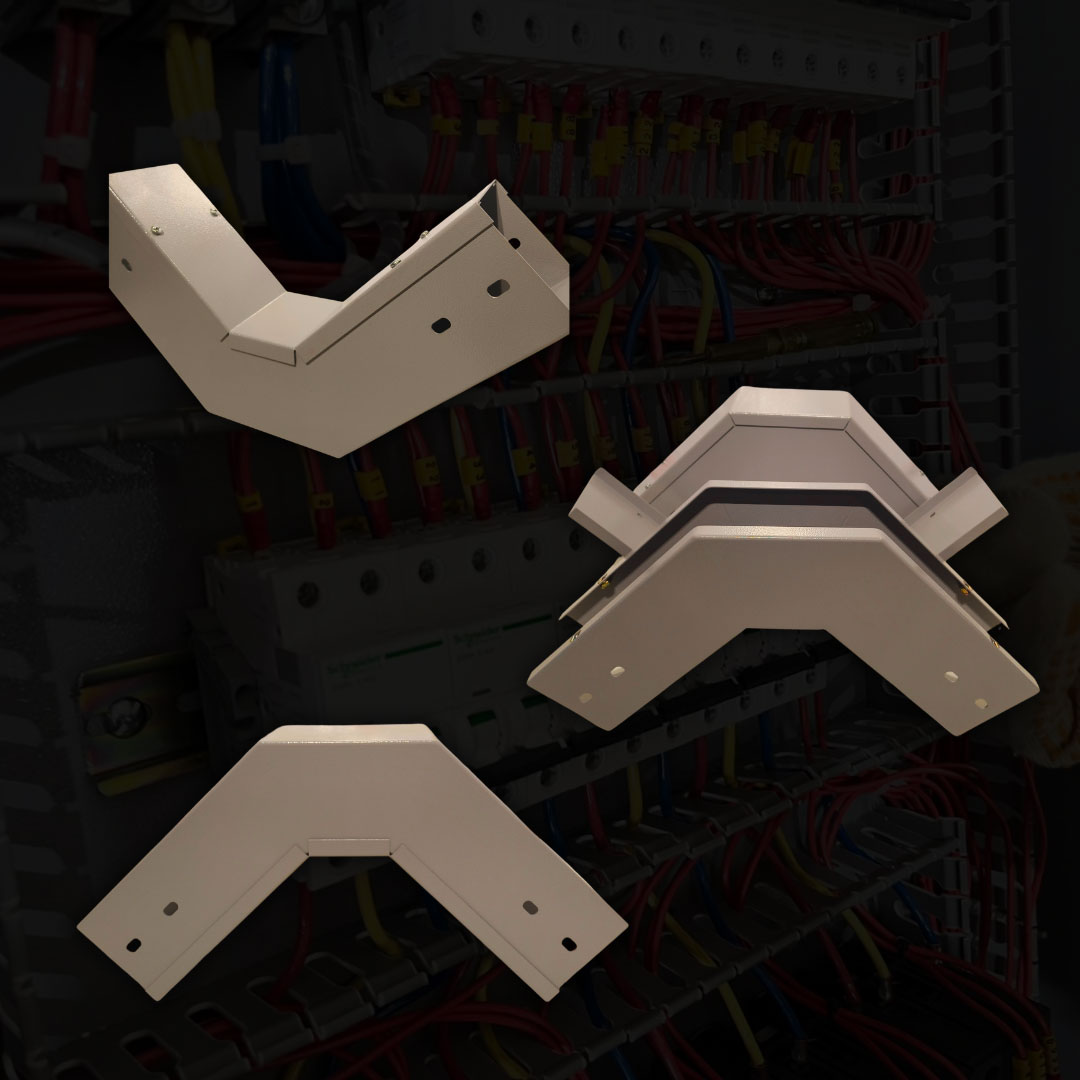

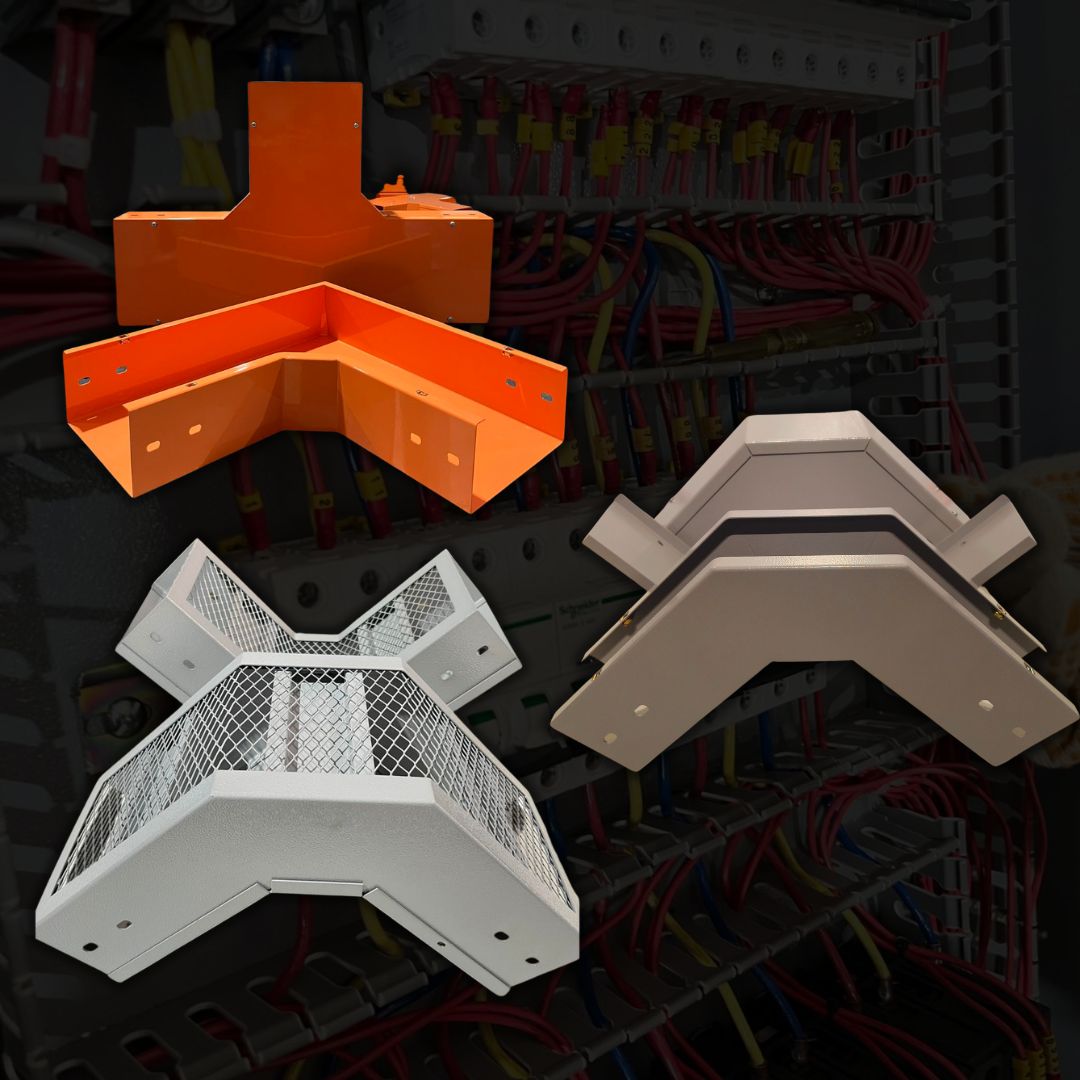

| Customization | Custom lengths and accessories such as connectors, bends, and mounting supports are available. |
Technical Data
| General Information | |
| Product Name: | Cable Tray System |
| Standards: | ANSI/NEMA VE 1, IEC 61537, BS EN 61537, UL 568 |
| Application: | Supports and routes electrical and communication cables in industrial, commercial, and residential installations |

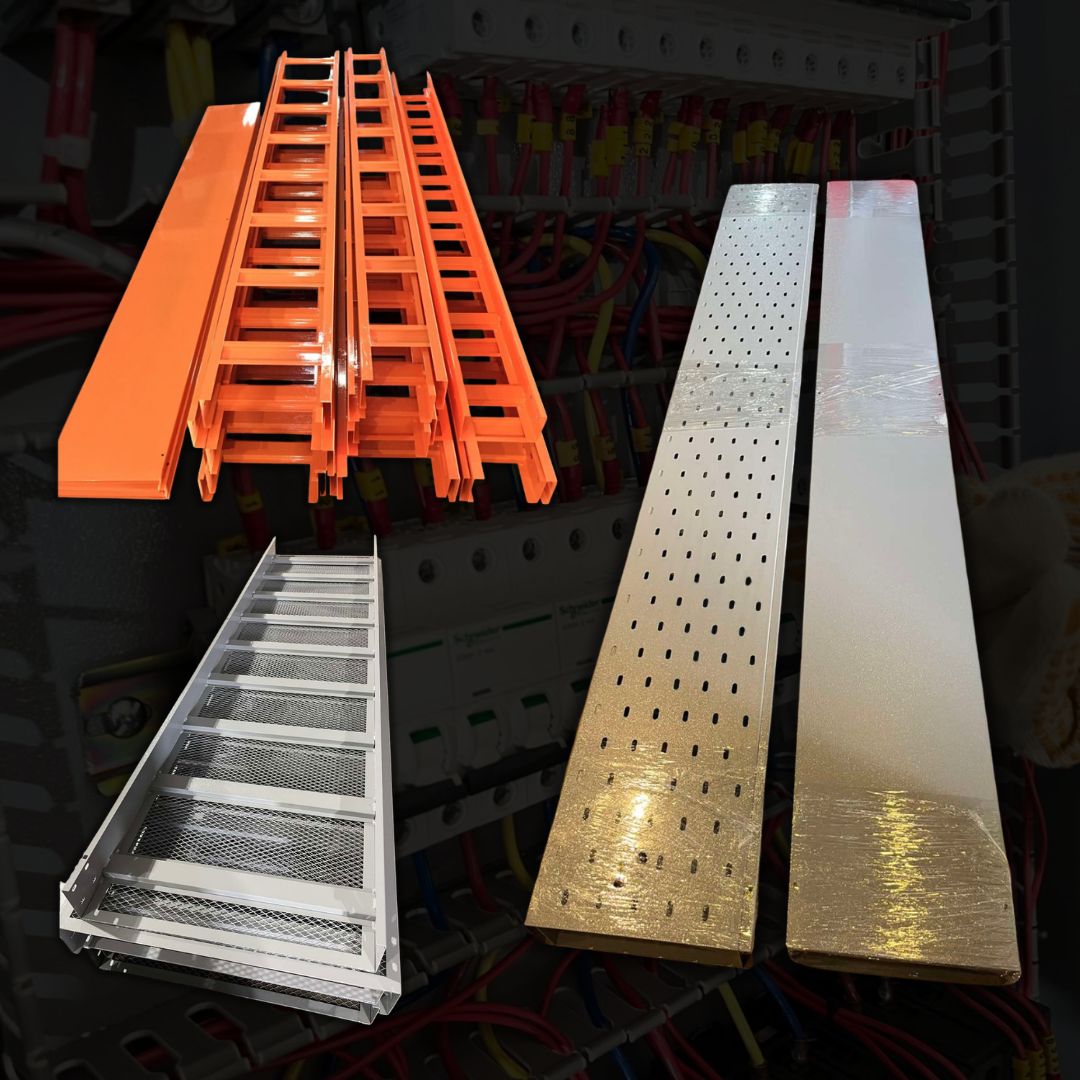

| Types Available: | Ladder, Perforated, Solid Bottom, Wire Mesh, Trough |
| Material Options: | Steel (Galvanized, Stainless), Aluminum, Fiberglass |
| Finish: | Hot-dip Galvanized, Pre-Galvanized, Powder Coated, Anodized (for Aluminum) |
Mechanical Specifications |
|
| Load Capacity: | Varies by design and size; typically 100–500 lbs/ft (varies by tray type) |
| Tray Widths: | Common sizes from 4” to 36” (100mm to 900mm) |
| Tray Depths: | Typically 1.5” to 6” (40mm to 150mm) |
| Span Length: | Standard support spans between 5 ft and 12 ft depending on load and material |
| Bend Radius: | Depends on cable type; generally ≥ 8 times cable diameter |
| Joint Types: | Flanged, bolted, or welded connections |
Environmental Condition |
|
| Indoor/Outdoor Use: | Suitable for both; material and finish selection depends on environment |
| Temperature Range: | -40°C to +80°C (depending on material) |
| Corrosion Resistance: | Available in galvanized, stainless steel, or coated for corrosive environments |
Available accessories include: Cable tray covers (solid or ventilated) for mechanical protection and safety, support brackets and hangers for flexible mounting, splice plates and connectors for secure tray joining, and grounding and bonding kits to ensure electrical safety. Optional features such as divider plates for cable segregation, expansion joints for thermal movement, and custom-fabricated bends and fittings provide adaptability to meet specific installation requirements in industrial, commercial, and infrastructure projects.
