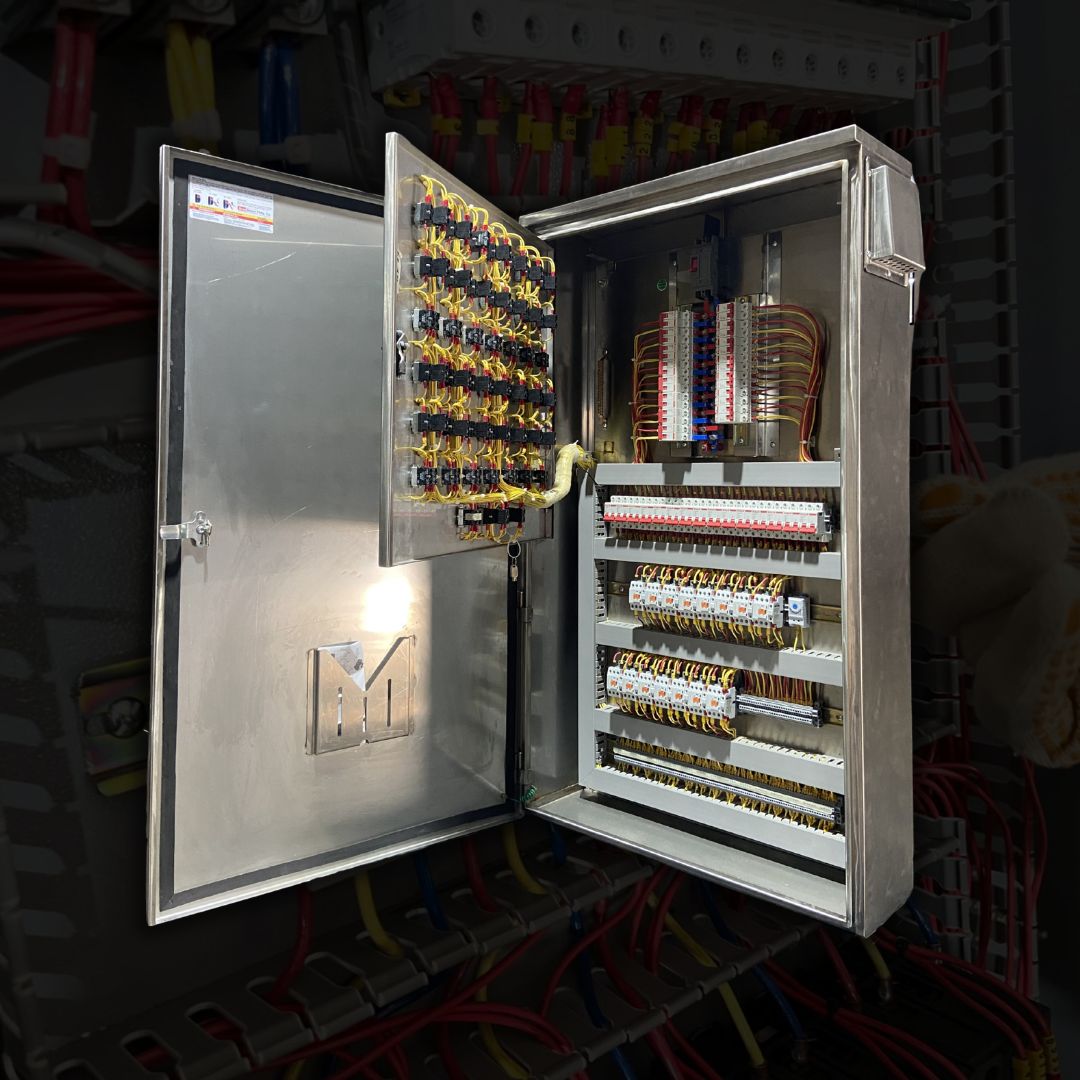

CONTROL PANEL
| Panel Type | Description |
|---|---|
| Control Panel | Designed to centralize and manage electrical systems, our Control Panels offer precise monitoring, automation, and control for machinery and processes across various applications. |
| Specification | Description |
|---|---|
| Input Voltage | Supports various input voltage levels depending on system requirements (e.g., 220V, 380V, 440V). |
| Mounting Type | Available in wall-mounted or free-standing options based on installation space and application. |
| Enclosure Rating | Typically designed with NEMA 1, 12, or 4X enclosures for indoor and outdoor use. |
| Customization | Configurable with specific components, control devices, labeling, and layout based on client specifications. |
Technical Data
| General Information | |
| Product Name: | Control Panel |
| Standards: | IEC 60204-1, UL 508A, NEMA ICS 2, NFPA 79 |
| Application: | Electrical control and automation of machinery and processes |
| Mounting Type: | Wall-mounted, free standing, or flush mount |
| Voltage Rating: | Up to 600V AC |
| Current Rating: | Typically 5 A to 4000 A |
Electrical Specifications | |
| Control Components: | PLCs, relays, contactors, motor starters, circuit breakers, timers |
| Control Voltage: | Typically 24V DC or 120V AC |
| Power Supply: | Single-phase or three-phase, 50/60 Hz |
| Wiring: | Copper conductors, rated for voltage and current |
| Short Circuit Rating: | Dependent on components and panel design |
Mechanical Specifications | |
| Enclosure Material: | 14 to 16 gauge steel, stainless steel, or aluminum |
| Enclosure Type: | NEMA 1, 3R, 4, 4X, or IP54 to IP66 depending on application |
| Finish: | Powder coated, epoxy painted, or brushed metal |
| Dimensions: | Customizable; typical sizes vary based on application |
| Door: | Hinged, lockable with viewing windows (optional) |
Environmental Condition | |
| Operating Temperature: | -20°C to +50°C |
| Storage Temperature: | -40°C to +70°C |
| Relative Humidity: | 5% to 95% non-condensing |
| Ingress Protection: | IP20 to IP66 depending on enclosure |
Available accessories include: Internal mounting plates, DIN rails, terminal blocks, cable ducts, and gland plates for efficient equipment and wiring layout. Additional options such as cooling fans, ventilation filters, lighting kits, and communication modules (Ethernet, Modbus, Profibus) support enhanced operation and integration. Optional features like touchscreen HMIs, indicator lights, panel meters, viewing windows, and key or padlockable handles provide increased functionality, safety, and user access control for diverse industrial automation and power control applications.
