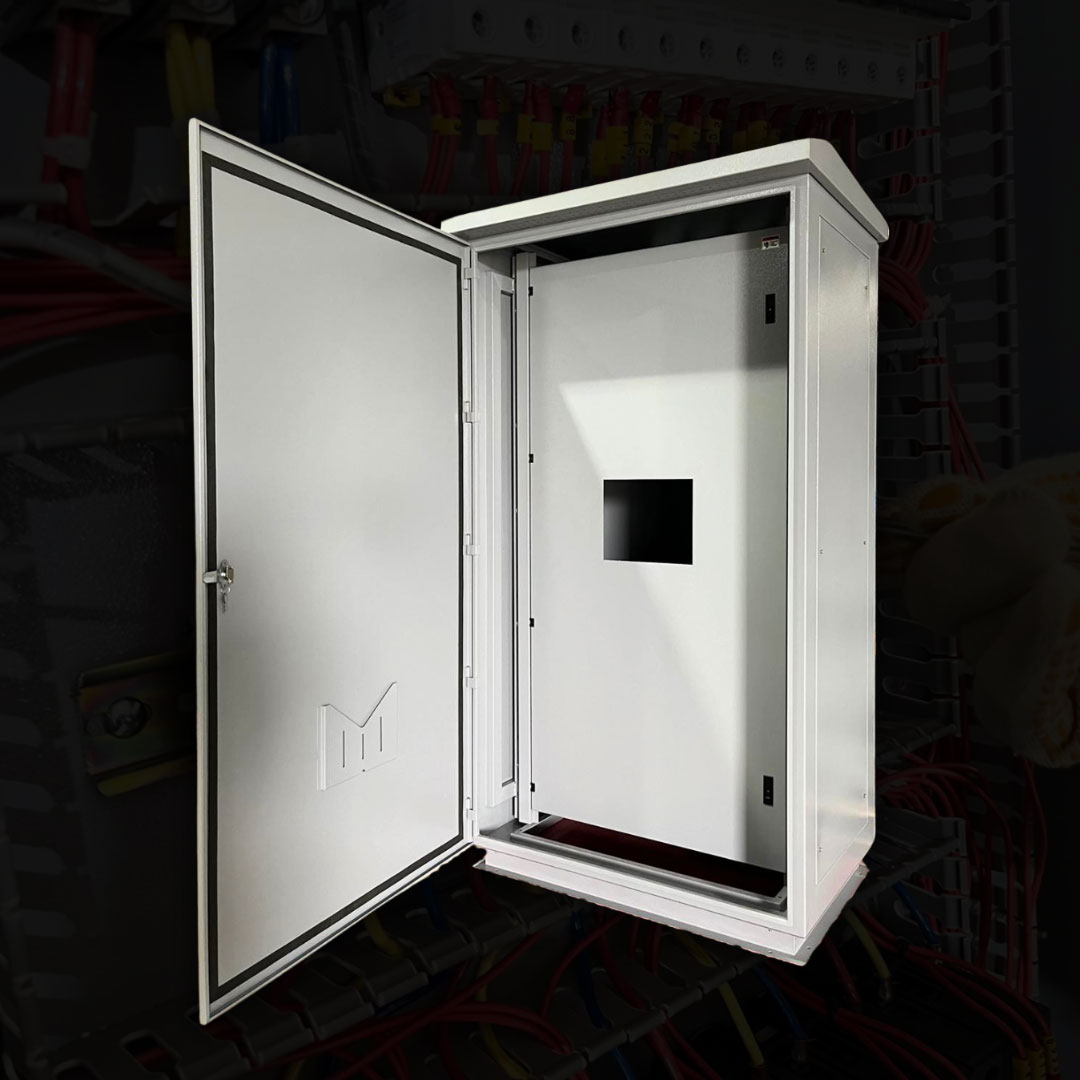

FREE STANDING ENCLOSURE
| Enclosure Type | Description |
|---|---|
| Free Standing Enclosure | Designed for large-scale applications, free standing enclosures offer ample space for housing complex electrical components while providing easy front and rear access for maintenance and installation. |
| Specification | Description |
|---|---|
| Construction Type | Free standing, floor-mounted design with front and rear access for easier maintenance and wiring. |
| Material Options | Available in powder-coated mild steel, stainless steel, or aluminum for various environments. |
| Enclosure Sizes | Customizable width, height, and depth to suit different panelboard and equipment layouts. |
| Mounting Provisions | Integrated mounting plates or brackets for internal components, with lifting lugs for transport. |
| Finishing & Customization | Finishes available in RAL colors, anti-corrosive coatings, and labeling upon request. |
Technical Data
| General Information | |
| Product Name: | Free Standing Enclosure |
| Standards: | NEMA 1, 3R, 4, 4X; UL 50 / UL 50E; IEC 60529 (IP ratings) |
| Application: | Housing electrical, electronic, and control equipment in industrial, commercial, and outdoor environments |
| Mounting Type: | Floor-mounted (free standing) |
| Material Options: | Steel (carbon or stainless), Aluminum, Fiberglass |
| Finish: | Powder coated, epoxy coating, or anodized (for aluminum) |
Mechanical Specifications |
|
| Construction: | Welded or bolted construction |
| Enclosure Types: | Available in NEMA 1, 3R, 4, and 4X ratings |
| Door Type: | Single or double front doors with locking handles |
| Sealing: | Gasketed doors for dust and water resistance (depending on rating) |
| Dimensions: | Customizable; common sizes range from small control enclosures to large server racks |
| Weight: | Varies by size and material |
Environmental Condition |
|
| Operating Temperature: | -20°C to +60°C |
| Storage Temperature: | -40°C to +70°C |
| Relative Humidity: | 5% to 95% (non-condensing) |
| Ingress Protection: | IP20 to IP66 depending on NEMA rating and enclosure design |
| Corrosion Resistance: | Available with coatings and stainless steel options for harsh environments |
Available accessories include: Internal mounting panels and backplates for easy equipment installation, cable entry kits and gland plates for secure wiring, ventilation fans and HVAC units for temperature control, and lighting kits for improved visibility. Optional features such as panel windows, viewing ports, heating elements, and locking mechanisms (key locks or padlocks) provide enhanced functionality, safety, and customization to meet diverse industrial and commercial application needs.
