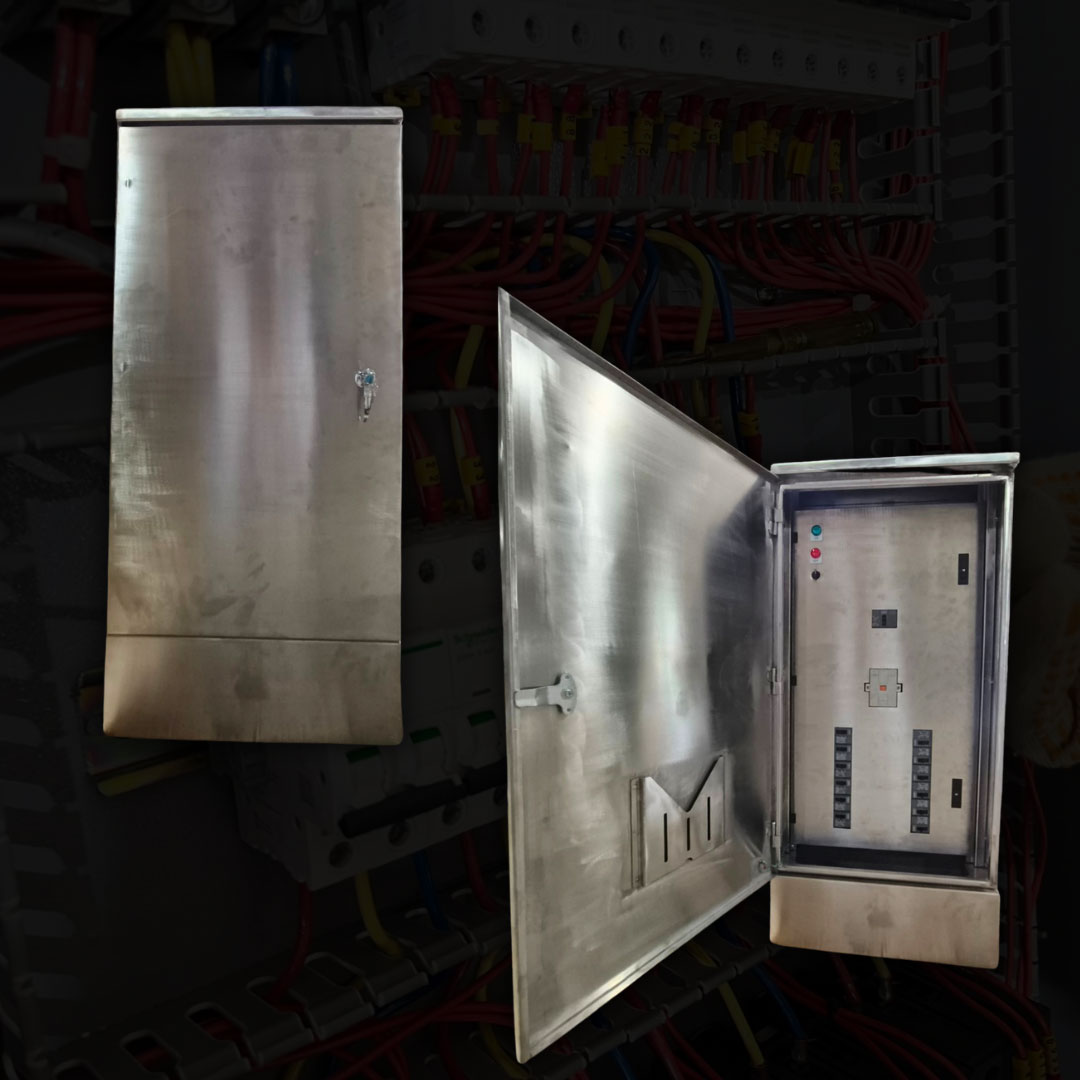

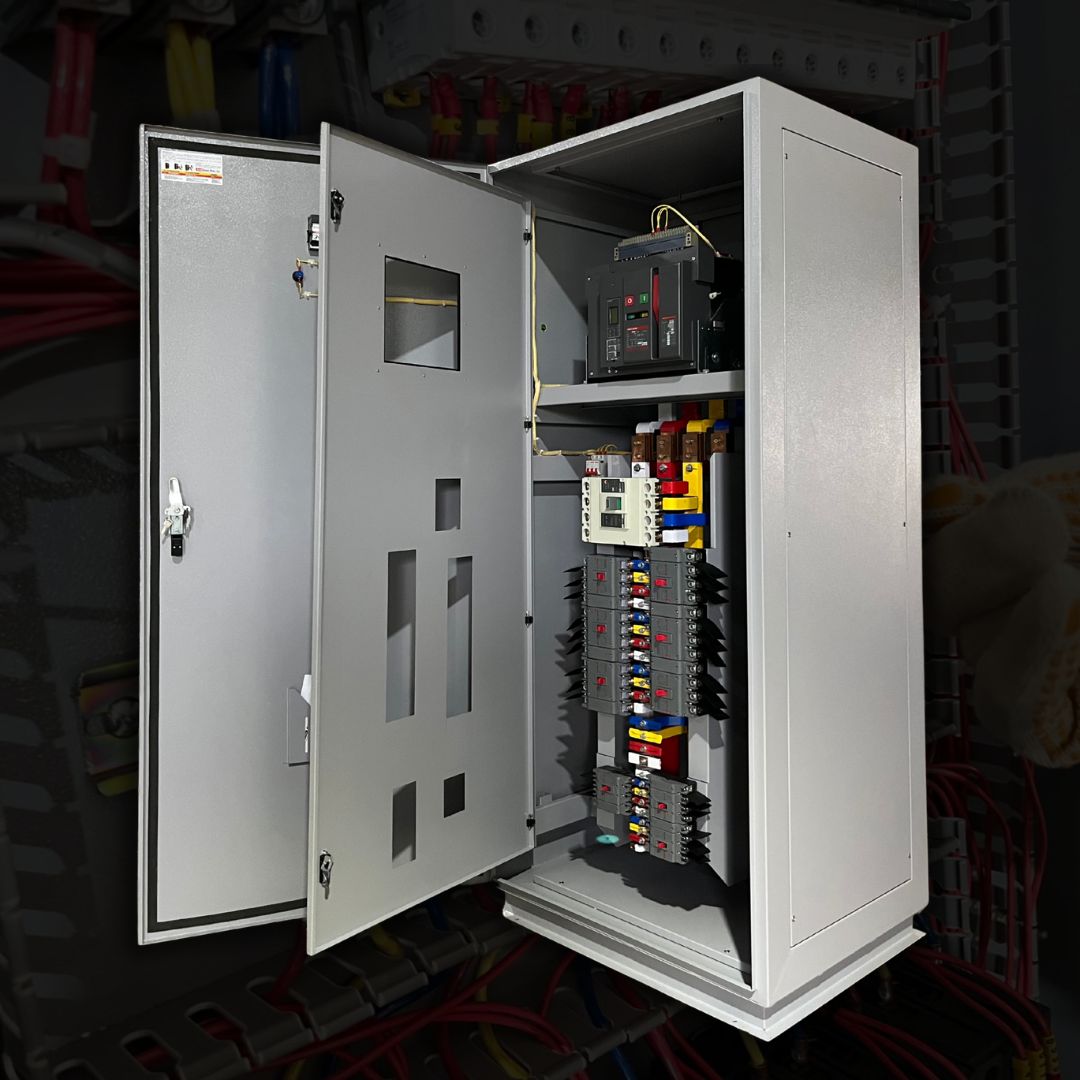

FREE STANDING PANEL
| Panel Type | Description |
|---|---|
| Free Standing Panel | Designed for floor-mounted applications, free standing panels provide ample space for complex wiring and control setups, offering accessibility from multiple sides for easier installation and maintenance. |
| Specification | Description |
|---|---|
| Mounting Type | Floor-mounted design ideal for large-scale electrical control and distribution systems. |
| Access Options | Accessible from front and rear panels for simplified wiring, maintenance, and upgrades. |
| Material Choices | Constructed from durable mild steel, stainless steel, or aluminum to match environmental needs. |
| Customization Options | Available with custom sizes, finishes, knockouts, and internal component layouts. |
| Optional Accessories | Compatible with lifting eyes, base plates, ventilation kits, and locking mechanisms. |
Technical Data
| General Information | |
| Product Name: | Free Standing Panel |
| Standards: | UL 508A, IEC 61439, NEMA PB-1, NEMA ICS 2 |
| Application: | Electrical control and distribution for industrial, commercial, and infrastructure applications |
| Mounting Type: | Floor-mounted, free standing |
| Panel Type: | Motor control centers, distribution panels, automation panels, MCC buckets |
| Voltage Rating: | Up to 600V AC |
| Current Rating: | Typically 30 A to 4000 A |
| Short Circuit Rating: | Up to 100 kAIC (depending on design and components) |
Electrical Specifications | |
| Bus Material: | Electrolytic copper or aluminum |
| Bus Rating: | Up to 6000 A (varies by panel size and design) |
| Circuit Protection: | Molded case breakers, fuses, or motor starters |
| Control Voltage: | 120 VAC standard; optional 24V, 24V DC, or others |
| Wiring: | Copper or aluminum conductors |
Mechanical Specifications | |
| Enclosure Material: | 14 to 16 gauge steel (carbon or stainless steel) |
| Finish: | ANSI 61 gray powder-coated finish |
| Door: | Hinged, lockable with viewing window options |
| Dimensions: | Customizable; typical widths from 12” to 48” and heights from 36” to 96” |
| Weight: | Varies by configuration and size |
Environmental Condition | |
| NEMA Rating: | NEMA 1, 3R, 4, 4X depending on enclosure selection |
| Operating Temperature: | -20°C to +50°C |
| Storage Temperature: | -40°C to +70°C |
| Relative Humidity: | 5% to 95% non-condensing |
| Altitude: | Up to 2000 m (derating may apply above) |
Available accessories include: Internal mounting panels and backplates for convenient equipment installation, cable entry kits and gland plates for secure wiring access, ventilation fans and HVAC systems for temperature regulation, and lighting kits to enhance panel visibility. Optional features such as viewing windows, panel meters, heating elements, and locking mechanisms (key locks or padlocks) offer improved functionality, security, and customization to suit a variety of industrial and commercial control and distribution applications.
