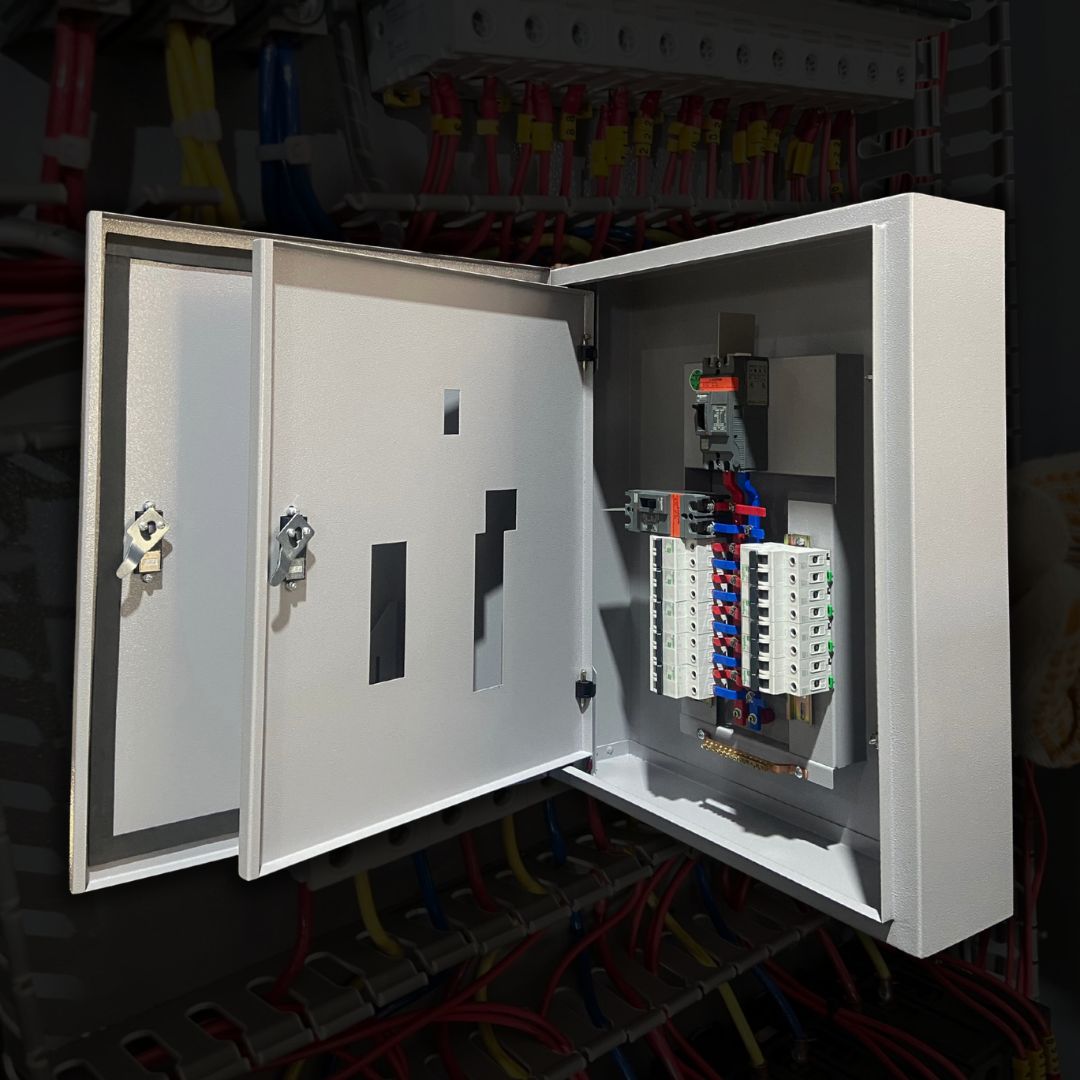

NEMA 12 PANEL
| Panel Type | Description |
|---|---|
| NEMA 12 Panel | Designed to withstand industrial environments, NEMA 12 Panels provide protection against dust, dirt, and dripping non-corrosive liquids. |
| Specification | Description |
|---|---|
| Panel Type | NEMA 12 |
| Material | Steel |
| Finish | Powder coated for enhanced durability and corrosion resistance. |
| Ventilation | Filtered vents provide protection against airborne dust particles. |
| Seal Protection | Gasketed enclosure prevents entry of non-corrosive liquids and moisture. |
Technical Data
| General Information | |
| Product Name: | Panelboard ‑ NEMA Type 12 |
| Standards: | UL 67, CSA C22.2 No. 29, NEMA PB-1 |
| Enclosure Type: | NEMA Type 12 – Indoor Use, Dust-Tight and Drip-Proof |
| Mounting Type: | Surface / Flush Mount |
| Application: | Industrial power and lighting distribution |
| Main Type: | Main Lug / Main Breaker |
| Panel Type: | Distribution Panelboard |
| Voltage Rating: | 120/240 V 1Φ 3W, 208Y/120 V 3Φ 4W, 480Y/277 V 3Φ 4W |
| Bus Rating: | 100 A to 600 A |
| Short Circuit Rating: | Up to 65 kAIC (based on breaker selection) |
Electrical Specifications | |
| Maximum Voltage: | 600 V AC |
| Bus Material: | 99.9 % Electrolytic Copper (CU) |
| Main Breaker Frame Size: | Up to 600 A (based on configuration) |
| Branch Breaker Types: | Bolt-on |
| Breaker Pole Options: | 1P, 2P, 3P |
| Neutral: | Full-sized, insulated and isolated |
| Ground Bar: | Included or Optional |
Mechanical Specifications | |
| Enclosure Material: | 14–16 Gauge Steel |
| Finish: | Baked Powder Coat (ANSI Gray 61 or custom) |
| Door: | Hinged, gasketed cover with locking provision |
| Sealing: | Factory-stamped for conduit entry |
| Dimensions: | Varies by model |
| Weight: | Approx. 45–110 lbs (varies by configuration) |
Environmental Condition | |
| NEMA Rating: | Type 12 – Dust-tight, Drip-proof, Indoor Use |
| Ambient Temperature: | ‑20 °C to +40 °C (without derating) |
| Storage Temperature: | ‑30 °C to +70 °C |
| Relative Humidity: | 5 % to 95 % (non‑condensing) |
| Altitude: | ≤ 2000 m (no derating) |
| Ingress Protection: | IP54 (dust protected, splash resistant) |
Available accessories include: Surge protection devices, sub-feed and feed-through lugs, ground and neutral bars, circuit directory labels, and keyed door locks for secure access. Optional features such as metering sections, shunt trip breakers, and top/bottom feed conversions provide flexibility and adaptability for a variety of industrial indoor applications where dust and drip protection are required.
