ECB NEMA-4X
| Panel Type | Description |
|---|---|

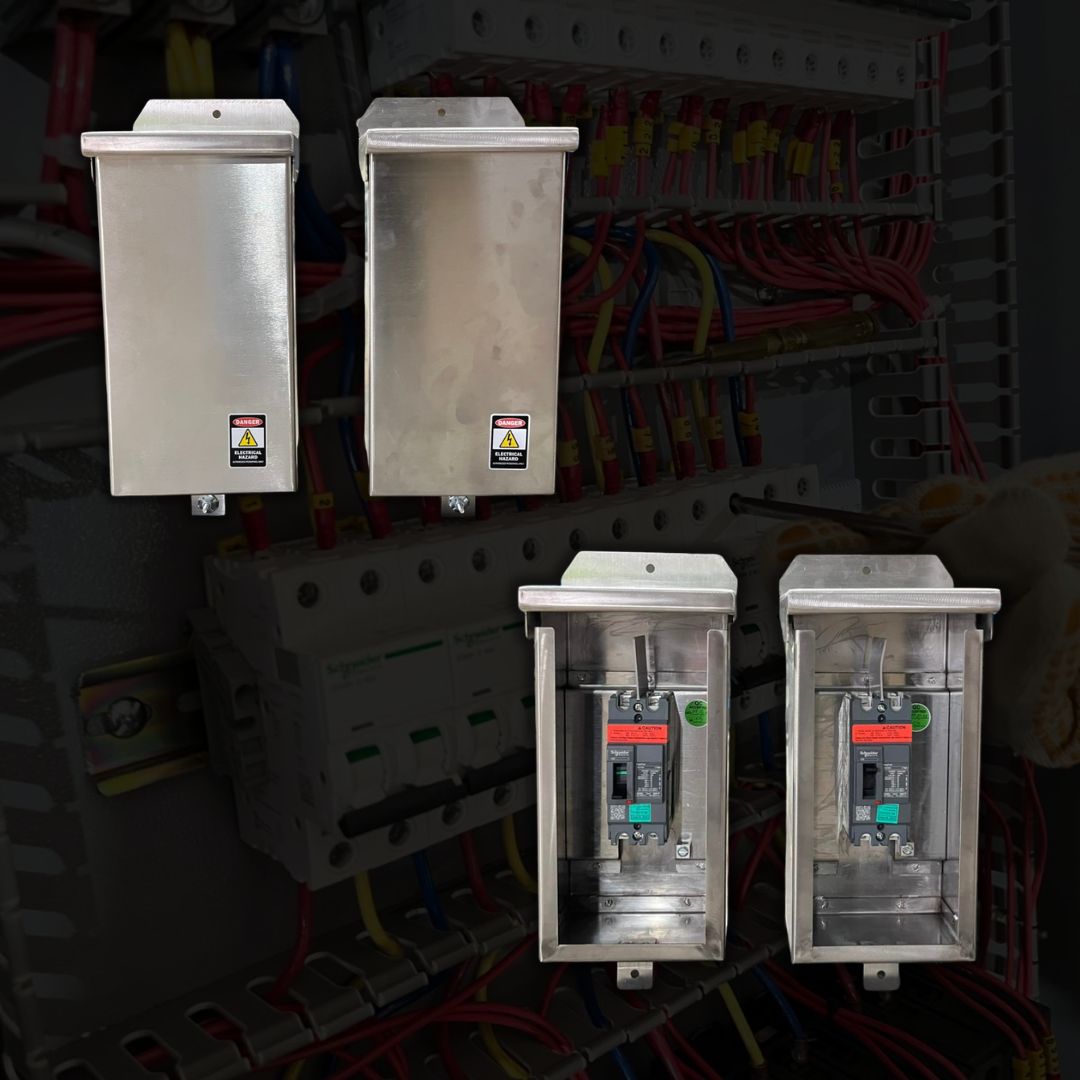

| ECB NEMA-4X | Constructed to NEMA 4X specifications, these panels offer exceptional protection against water, dust, and corrosion, making them suitable for harsh or outdoor environments. |
| Specification | Description |
|---|---|
| Enclosure Type | ECB NEMA-4X |
| Installation Environment | Suitable for harsh or outdoor environments where corrosion, water, and dust are concerns. |
| Protection Features | Offers protection against water, dust, and corrosive elements. |
| Material | Constructed from stainless steel for superior durability and long-term resistance. |
Technical Data
| General Information | |
| Product Name: | Panelboard ‑ NEMA Type 4X |
| Standards: | UL 67, UL 50/50E, CSA C22.2 No. 29, NEMA PB‑1 |
| Enclosure Type: | NEMA Type 4X – Indoor/Outdoor Use, Corrosion and Water Resistant |
| Mounting Type: | Surface Mount |
| Application: | Power and Lighting Distribution in Harsh or Wet Environments |
| Main Type: | Main Lug / Main Breaker |
| Panel Type: | Distribution Panelboard |
| Voltage Rating: | 120/240 V 1Φ 3W, 208Y/120 V 3Φ 4W, 480Y/277 V 3Φ 4W |
| Bus Rating: | 100 A to 600 A |
| Short Circuit Rating: | Up to 65 kAIC (based on breaker selection) |
Electrical Specifications | |
| Maximum Voltage: | 600 V AC |
| Bus Material: | 99.9 % Electrolytic Copper (CU) |
| Main Breaker Frame Size: | Up to 600 A (based on configuration) |
| Branch Breaker Types: | Bolt-on |
| Breaker Pole Options: | 1P, 2P, 3P |
| Neutral: | Full-sized, insulated and isolated |
| Ground Bar: | Included or Optional |
Mechanical Specifications | |
| Enclosure Material: | 304 or 316 Stainless Steel / Non-metallic (Polycarbonate, Fiberglass) |
| Finish: | Natural Brushed or Powder Coated (where applicable) |
| Door: | Hinged, Seal-Gasketed Cover with Locking Provision |
| Sealing: | Watertight with Continuous Polyurethane or Neoprene Gasket |
| Dimensions: | Varies by configuration |
| Weight: | Approx. 60–130 lbs (depending on material and size) |
Environmental Condition | |
| NEMA Rating: | Type 4X – Watertight, Corrosion-Resistant, Outdoor/Indoor Use |
| Ambient Temperature: | ‑20 °C to +40 °C (without derating) |
| Storage Temperature: | ‑30 °C to +70 °C |
| Relative Humidity: | 5 % to 95 % (non‑condensing) |
| Altitude: | ≤ 2000 m (no derating) |
| Ingress Protection: | Protection from rain, hose-directed water, splashing, and corrosive agents |
Available accessories include: Corrosion-resistant surge protection devices, stainless steel sub-feed and feed-through lugs, isolated ground and neutral bars, circuit directory labels, and keyed or pad-lockable door latches. Optional features such as watertight metering sections, shunt trip breakers, and top/bottom feed configurations ensure flexibility and reliability in harsh environments, including washdown areas, coastal zones, and chemical processing facilities.
